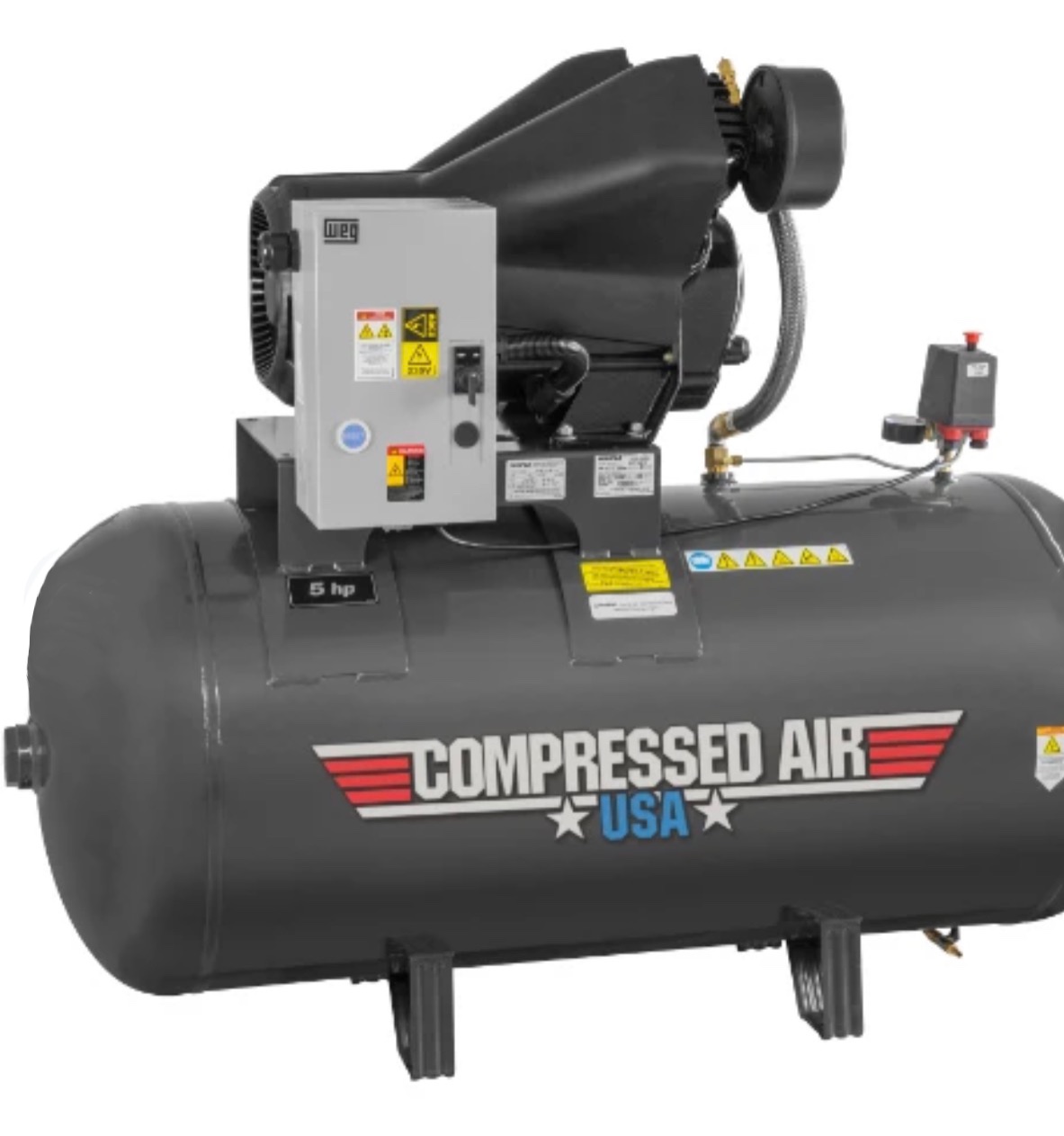

5HP Horizontal Reciprocating Air Compressor - 80 Gallon (XD5)

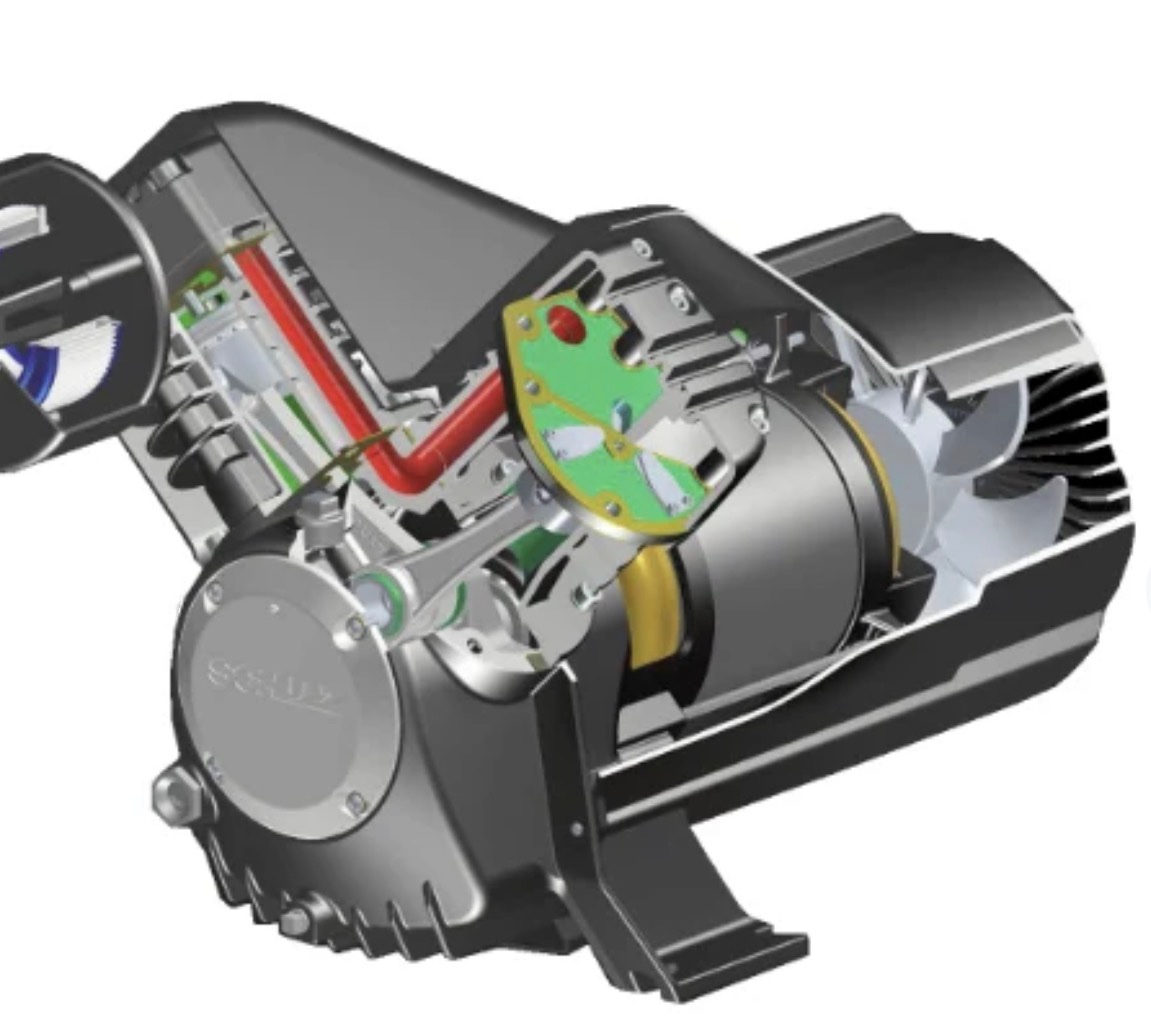

The XD5 is a 5 HP horizontal reciprocating compressor for busy shops, automotive bays and paint booths that need a strong supply of air from a compact machine. It moves 20 CFM at up to 175 PSI on 230V power, wired for either single-phase or three-phase supply at 60 Hz. Rather than a belt and pulleys, the motor connects to the pump through a direct-drive coupling, so there is no belt to tension or replace and no exposed rotating parts. The pump has two cast iron cylinders with a stainless steel valve system, and forced-air cooling keeps operating temperatures down; with synthetic lubricant, oil changes can be stretched to roughly 3,000 hours. A magnetic starter with motor overload protection and an automatic pressure switch handle starting and stopping, so the machine cycles on its own as demand changes. Storage is a powder-coated 80 gallon steel tank certified to ASME and CRN standards, with a manual drain valve and tubing. Four vibration pads and a discharge ball valve are included in the box. The compressor measures 55 x 23 x 45 in, weighs 368 lbs and is covered by a 2 year warranty. The horizontal tank layout gives the machine a low profile, which suits rooms where ceiling height is limited or where the unit has to slide under a mezzanine or bench line. Installation is straightforward: set the unit on a level floor, connect the discharge valve to your air piping, and wire it to a properly protected supply that matches your building's phase and voltage. Day-to-day upkeep is limited to checking the oil level, inspecting the intake filter and draining condensate from the tank on a regular schedule. Because the pump is oil lubricated and air cooled, it works best in a ventilated space with a clean, dry intake, and it should be kept clear of dust from grinding or sanding operations. The tank's drain valve should be opened routinely so that moisture does not collect and shorten the life of the vessel or contaminate downstream tools.
